1" (25mm) Wheel Spacers for Geo Suzuki | 5x5.5 (5x139.7 | 12x1.25 Studs |
1" (25mm) Wheel Spacers for Geo Suzuki | 5x5.5 (5x139.7 | 12x1.25 Studs |
Couldn't load pickup availability
Space out your wheels for a more aggressive stance or increased suspension and brake clearance.

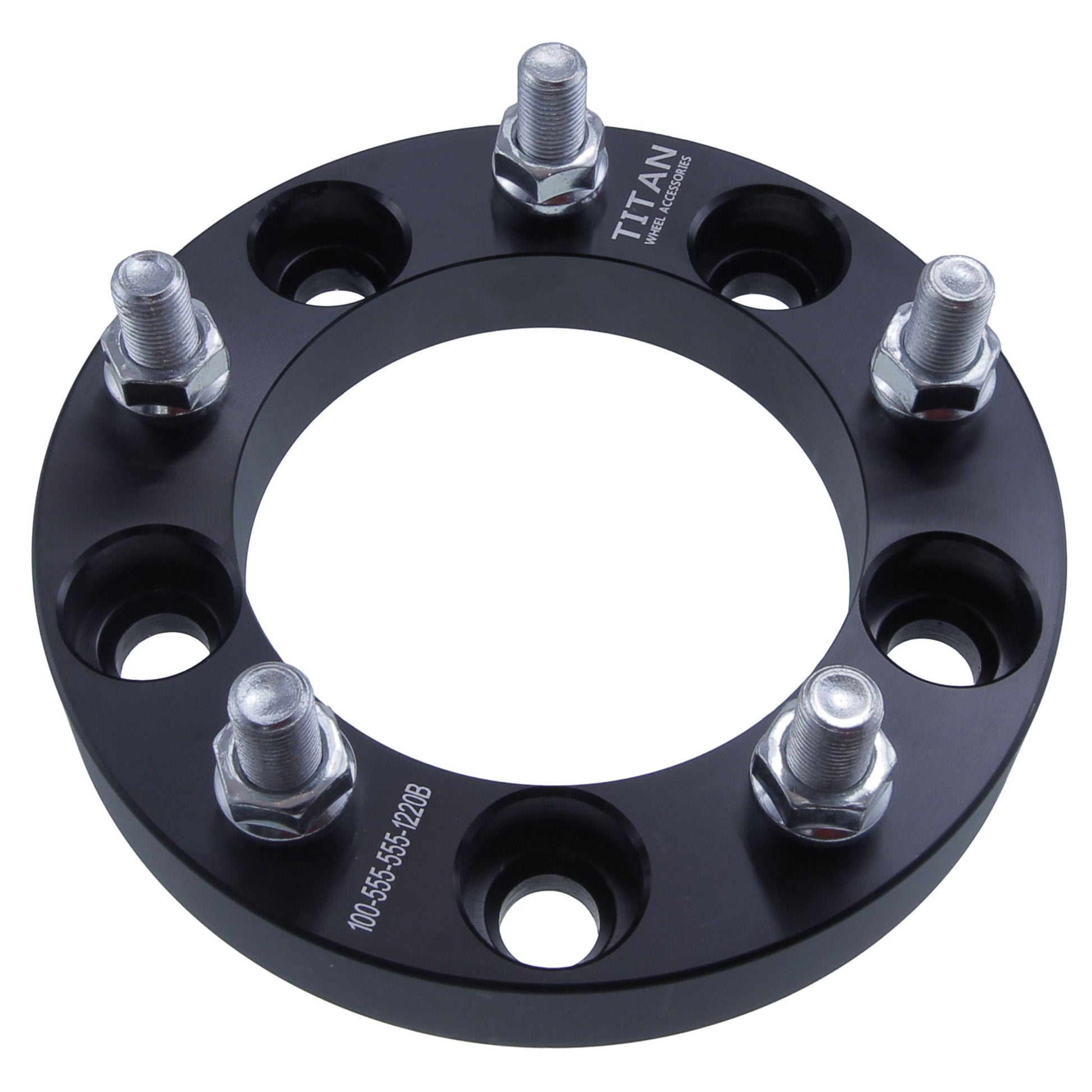

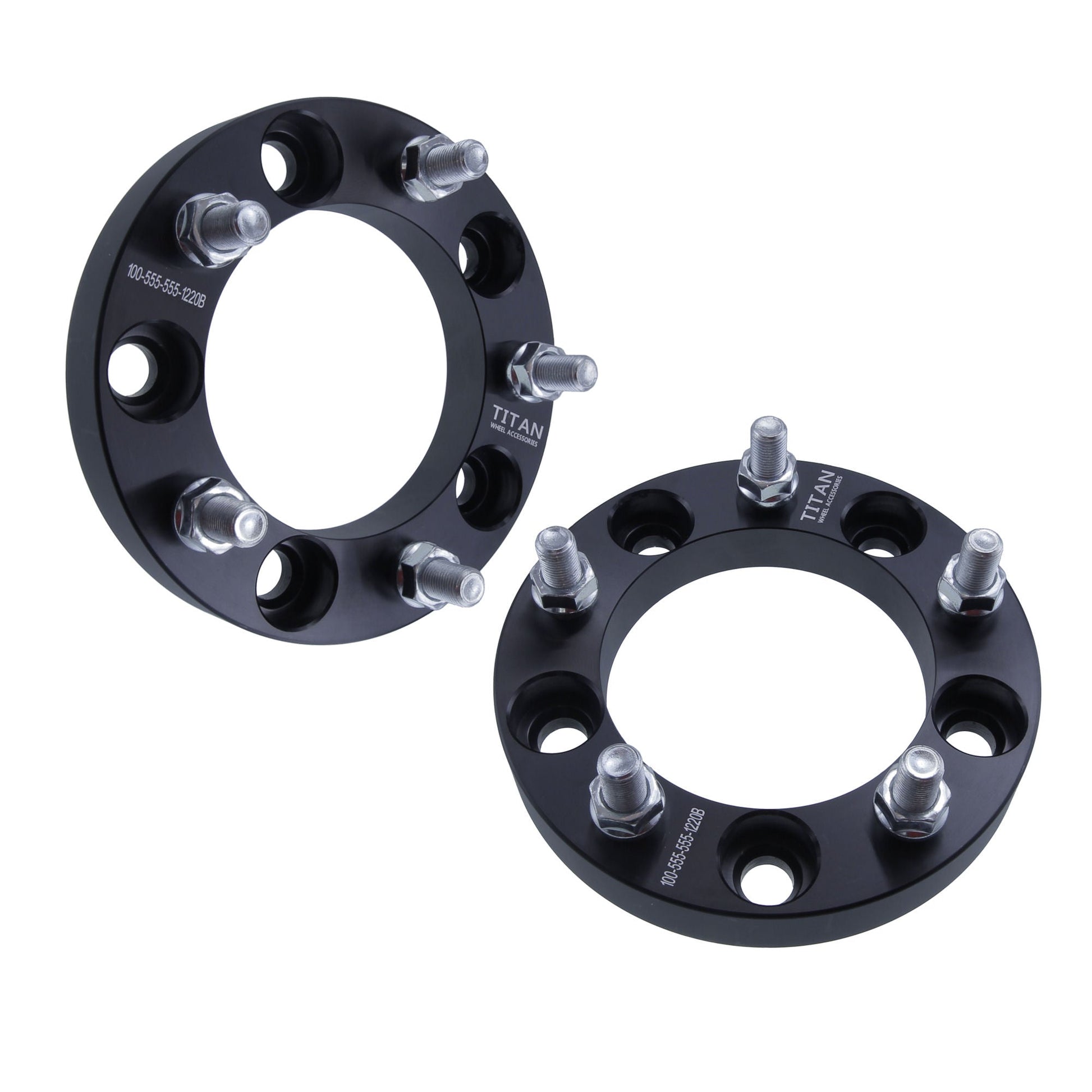

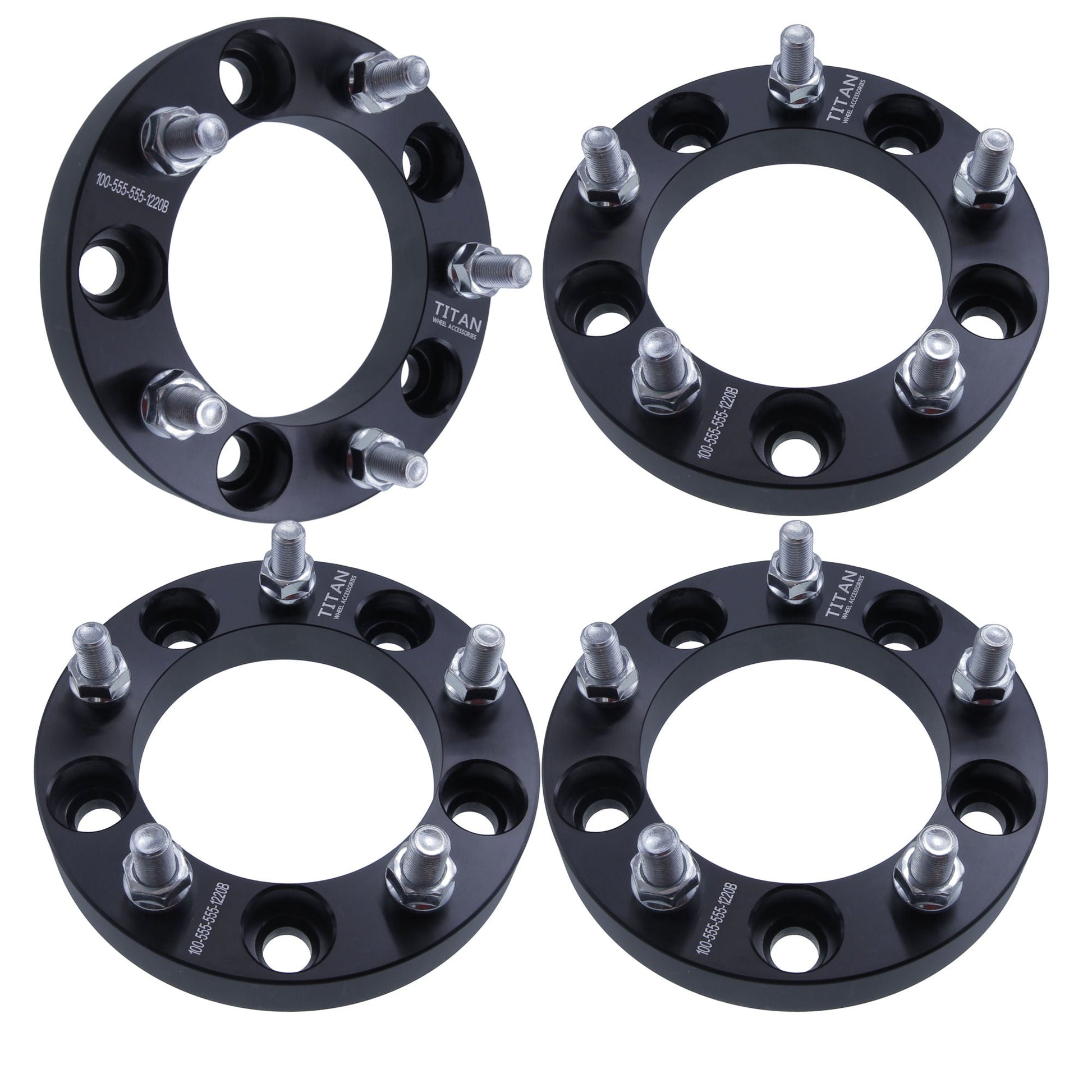

These Titan Wheel Accessories 1 Inch wheel spacers are designed with a 5x139.7 (5x5.5) bolt pattern and 12x1.25 thread pitch for Geo Tracker, Suzuki Samurai, Sidekick, Vitara and XL-7. They are machined from T6 6061 billet aluminum, making them both lightweight and durable. These spacers will improve the stance of your vehicle, providing a more aggressive look while also adding additional clearance for aftermarket brake and suspension parts. They also allow for larger wheel and tire combinations to be installed, giving you more options for customization. These spacers are easy to install and come with all necessary hardware.
Specifications
Specifications
- Vehicle Bolt Pattern: 5x5.5 (5x139.7)
- Wheel Bolt Pattern: 5x5.5 (5x139.7)
- Hub Bore: 108
- Thread Pitch: 12x1.25
- Thickness: Each spacer measures 1 Inch (25mm) thick
Materials
Materials
- Our spacers are machined from billet T6 6061 aluminum
- Black finish
Vehicle Fitment
Vehicle Fitment
These spacers will bolt up to the following vehicles:
1992-2004 Chevrolet Tracker
1999-2005 Suzuki Grand Vitara
2007-2013 Suzuki Vision
1999-2004 Suzuki Vitara
2002-2006 Suzuki XL-7
1999-2005 Suzuki XL-75
Vehicle fitment information applies only to the vehicle's hub.
View full detailsInstallation Information
- Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lug nuts WILL BE required
- Make sure that all lug nuts get a full 6-8 turns when tightening. Failure to do so, can result in damage to your vehicle.
- Installation needs to be performed by a trained professional
It's Possible that your OEM Studs are longer than the spacer is thick, if so you have a few options:
- Your lugs studs will need to be shortened by grinding them down or you can replace your OEM lug studs with shorter studs.
- If your wheels have sufficient sized and placed pockets machined in the backside, between the mounting holes, then you should not need to modify your factory wheel studs.
- Always ensure that there is no gap between the spacer and the back of the wheels.
-
Same Day Shipping
Orders placed before 3:00 PM EST will be shipped out same day. Weekend and Holiday orders will be shipped promptly on the following business day.
-
Questions?
Feel free to reach out to us with any questions. Our staff is highly trained and happy to help you find the correct product for your vehicle. You can email us at info@titanwheelaccessories.com
I got a set of wheels for my Suzuki samurai and they didn't quite have enough back spacing. These 1" spacers were the ticket. Check out my youtube video on the install @CTMadModz
These wheel spacers worked great. Easy install.
Solid product. Came as advertised
Got good all parts included great buy
I bought these wheel spacers, 1” to make the factory wheels flush with the body of my baby. I have restored this car back to original but just wanted the wheels to be flush.
The quality of these pieces is superb and they are top quality all around.
I would not hesitate to recommend these to X-90, Sidekick and Tracker owners.
